Special Offer V-Design Portable Modular Building – 10.35m × 6m Shell & Core
£52,000.00
Special Offer V-Design Portable Modular Building – 10.35m × 6.00m, supplied as a shell-and-core modular building with insulated roof and walls, structural floor deck, aluminium entrance door, feature angled glazing and architectural external finishes.
- External size
- 10.35m × 6.00m
- Approximate gross area
- 62.10m²
- Specification
- Shell & core
- Roof
- 160mm PIR-core insulated panel with PVC membrane
- Walls
- 120mm PIR-core insulated sandwich panels
- Internal fit-out
- Excluded
- Availability
- Special offer – subject to quotation
Availability
Special offer – available to order
Transport, unloading crane, site foundations, utility preparation and final service connections are excluded unless expressly included in the written quotation.
This is a shell-and-core offer. Floor finishes, internal partitions, internal doors, electrical installation, plumbing, groundworks, service preparation and unloading crane are excluded unless separately agreed.
Special offer – available to order
Special offer | V-design modular shell
Architectural 10.35m × 6m portable modular building supplied shell & core

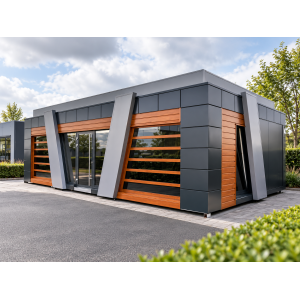

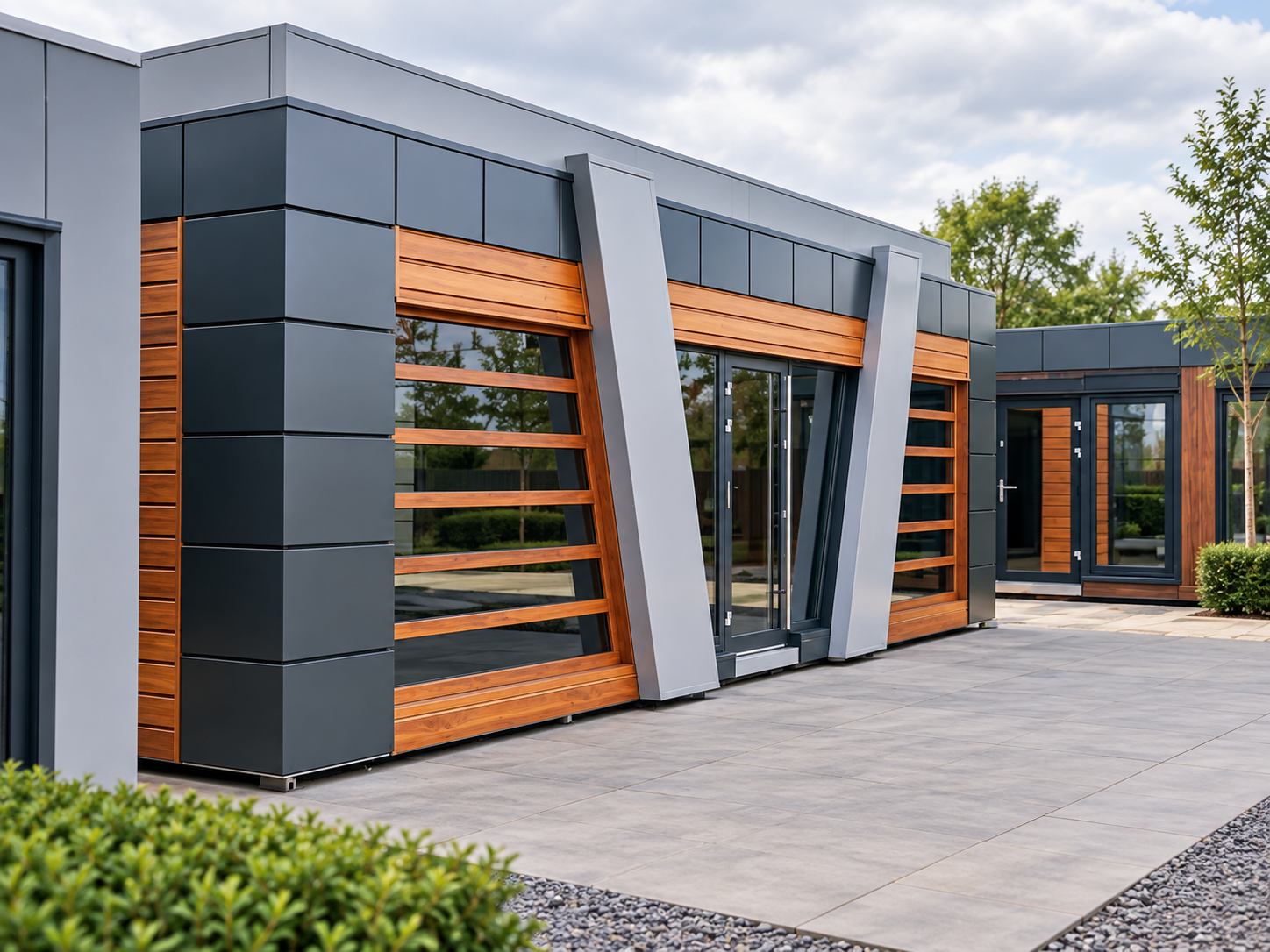

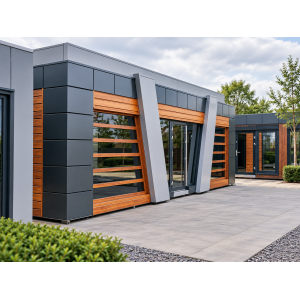

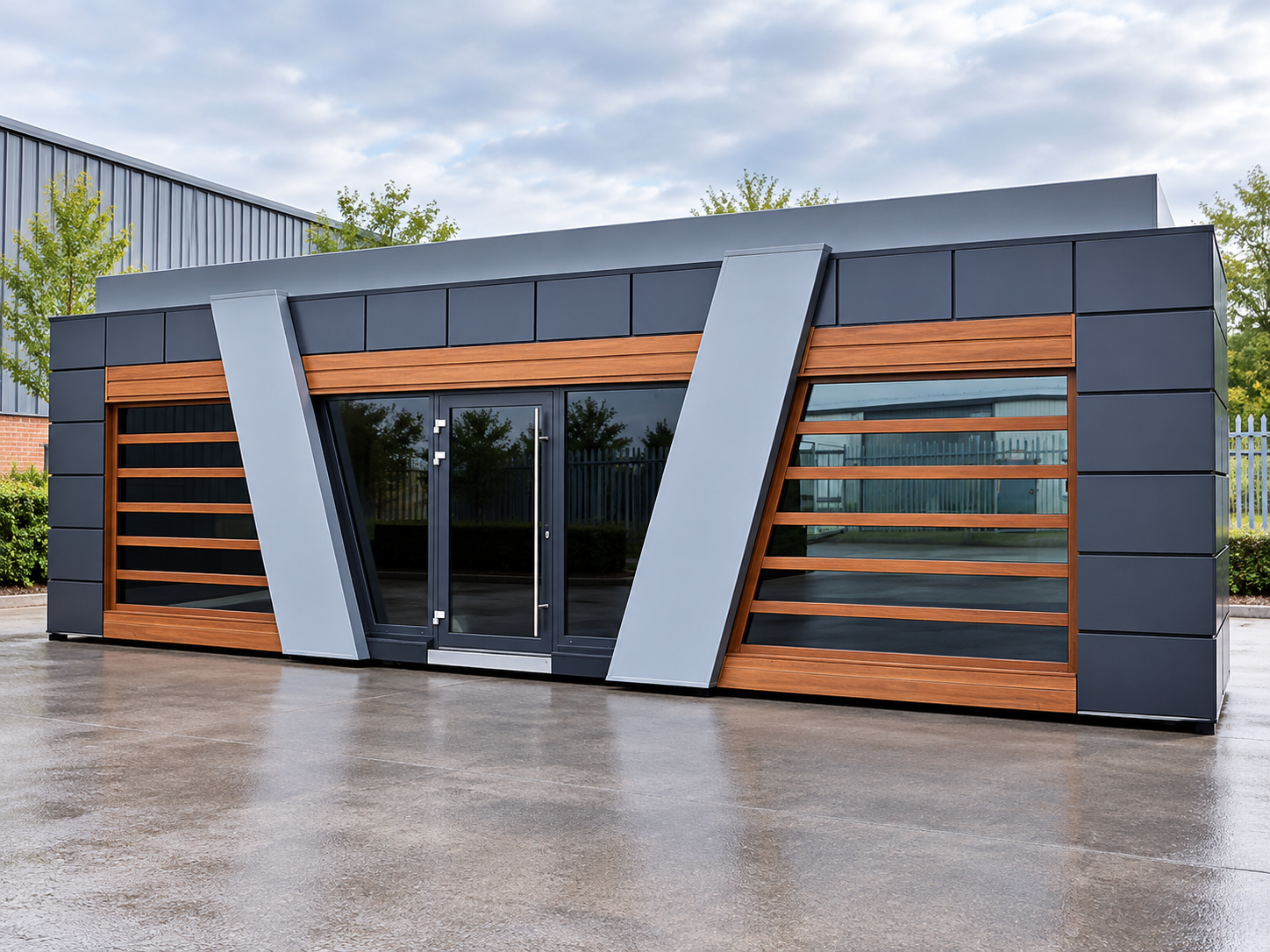

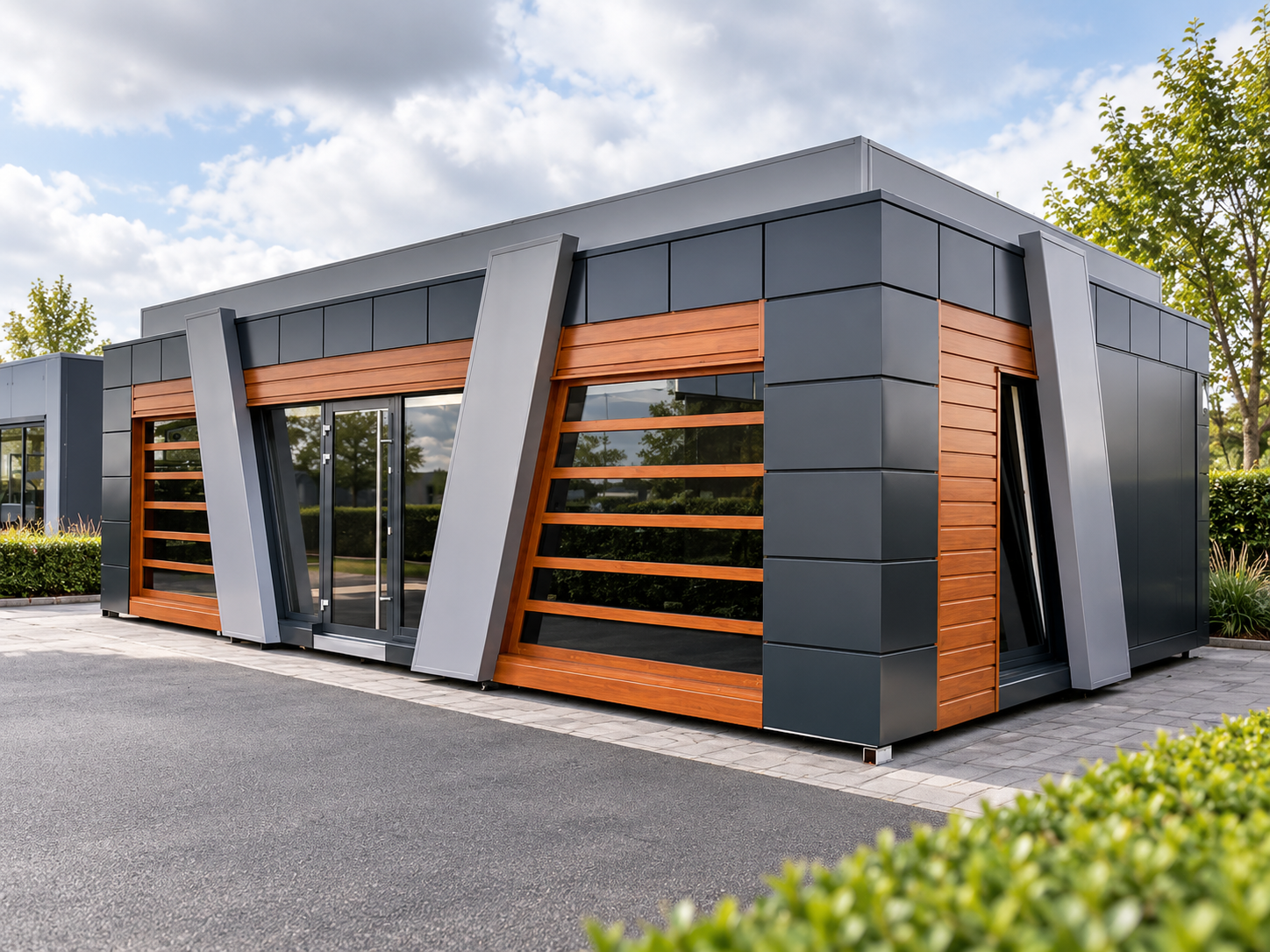

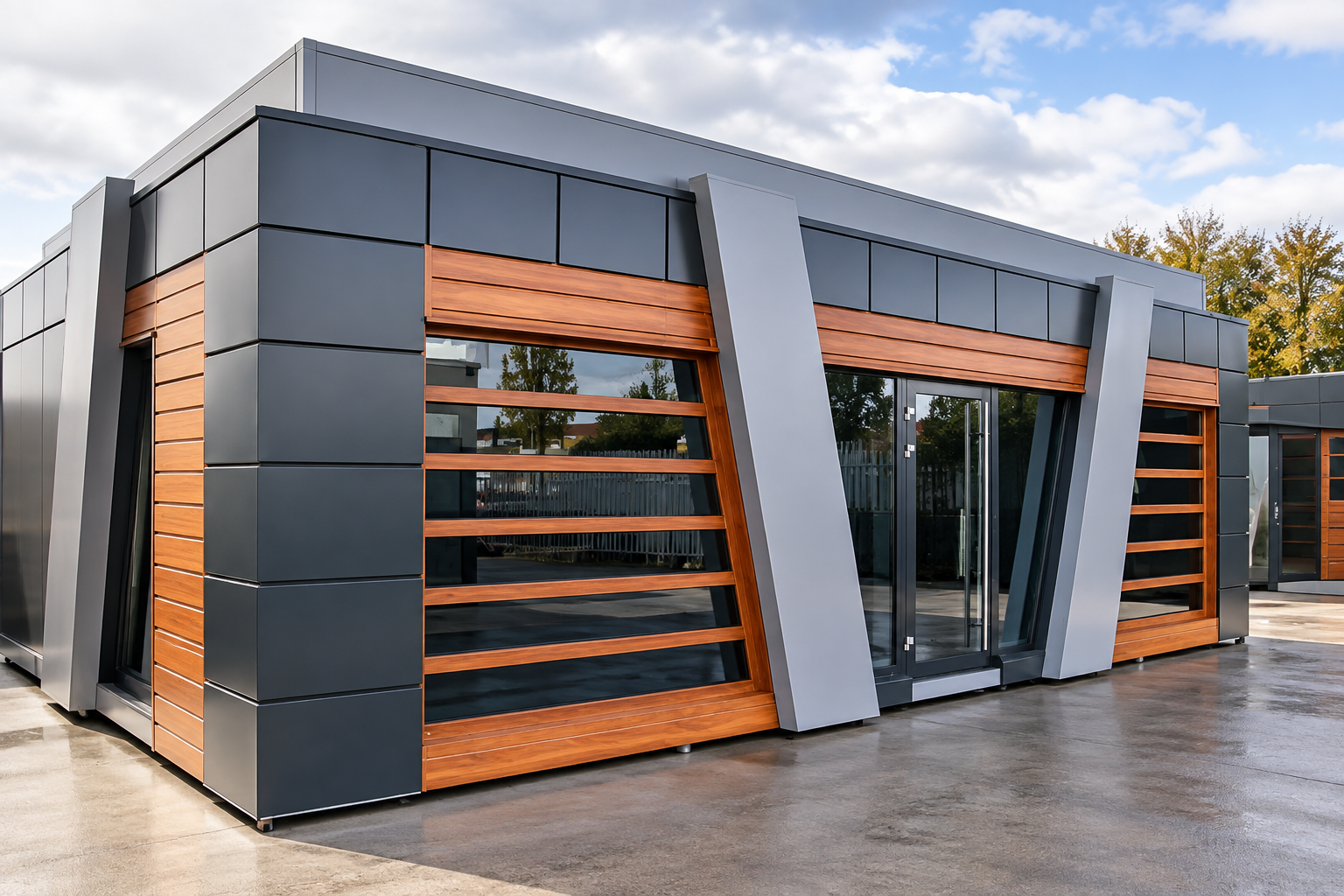

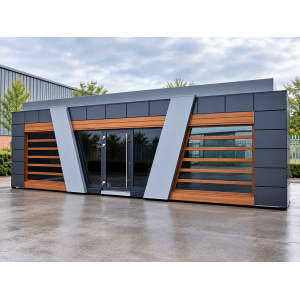

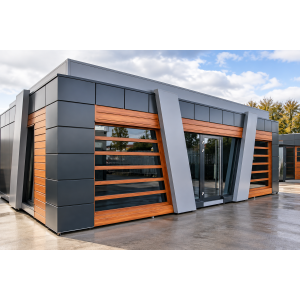

A distinctive portable modular building with angled feature glazing, wood-effect elevations and architectural parapet details, supplied as an insulated shell ready for project-specific internal fit-out.
The building measures 10.35m × 6.00m and provides approximately 62.10m² of gross external footprint. Its V-design front elevation uses large fixed and opening angled PVC windows with tinted glazing to create a strong customer-facing appearance.
The shell includes an insulated mono-pitch roof, insulated external walls, steel floor structure with OSB deck, aluminium entrance door, architectural parapets, decorative angled panels, gutters, flashings and external ventilation grilles.
The building is intentionally supplied without final flooring, internal partitions, internal doors, electrical installation or water and drainage installation. This allows the purchaser to complete the interior around the intended office, showroom, marketing, retail or commercial use.
Groundworks, prepared level base, utility service points and unloading crane are also outside the standard shell-and-core scope.
Special offer
Approx. 62.10m²
Shell & core
160mm PIR insulated roof
120mm PIR insulated walls
Architectural feature glazing
- External footprint
- 10.35m × 6.00m
- Approximate gross area
- 62.10m²
- Building format
- Portable modular shell
- Roof insulation
- 160mm PIR-core panel
- Wall insulation
- 120mm PIR-core panel
- Commercial basis
- Special offer quotation
Applications and layout options
Commercial
Portable Commercial Building
Suitable as a shell for offices, customer-facing premises, site administration or other commercial accommodation once the internal fit-out is completed.
Sales & marketing
Marketing Suite or Sales Pavilion
The feature glazing, architectural parapets and wood-effect elevations suit developments requiring a visually distinctive sales or marketing building.
Retail & display
Showroom or Retail Pavilion
The open shell allows display, reception and customer areas to be developed around the final commercial brief.
Temporary use
Relocatable Project Building
Suitable for temporary or relocatable commercial use where the site, foundations, lifting strategy and statutory requirements support modular installation.
Indicative product specification
Use this table as a configuration guide. The written quotation and approved drawings control the final product, interfaces and project-specific compliance.
| External dimensions | 10.35m × 6.00m |
|---|---|
| Approximate gross footprint | 62.10m² |
| Specification | Shell & core |
| Roof form | Mono-pitch |
| Internal layout | Open shell; internal partitions excluded |
| Availability | Special offer subject to quotation |
| Structure | Steel modular structural system |
|---|---|
| Protection | Steel structural elements protected with anti-corrosion treatment |
| Final engineering | Foundation reactions, lifting points and structural details to the project-specific drawings |
| Roof panel | 160mm sandwich panel with PIR insulation core |
|---|---|
| Roof form | Mono-pitch |
| Waterproofing | PVC roof membrane |
| Rainwater goods | PVC gutter included |
| Roof detailing | Sheet-metal flashings, roofing sealants and associated finishing components included |
| Wall construction | 120mm sandwich panel with PIR insulation core |
|---|---|
| Internal finish | Factory panel surface forming part of the shell |
| External finish | Combination of sandwich panel, architectural cassette details and wood-effect sheet panels as described in the elevation specification |
| Primary floor structure | Insulated steel lattice / truss floor structure |
|---|---|
| Deck | 22mm OSB board |
| Final floor finish | Excluded |
| Examples of excluded finish | Laminate flooring, PVC flooring or other decorative floor covering |
| Quantity | 1 |
|---|---|
| Door type | Glazed aluminium entrance door |
| Dimensions | Approx. 1.10m × 2.10m |
| Handle | Approx. 1.80m tubular pull handle |
| Large fixed angled windows | 2 × PVC fixed angled windows, approx. 2.45m × 2.00m, Golden Oak external foil |
|---|---|
| Small fixed angled windows | 2 × PVC fixed angled windows, approx. 1.20m × 2.00m |
| Opening angled windows | 2 × PVC tilt-opening angled windows, approx. 1.20m × 2.00m |
| Glass appearance | Tinted glazing |
| Final glazing specification | Glass type, safety classification and thermal performance to be confirmed in the approved window schedule |
| Primary parapet | Parapet to three sides of the building |
|---|---|
| Front corners | Two front corner features finished with architectural elevation cassettes |
| Additional parapet | Additional three-sided parapet to the pavilion section |
| Decorative elements | 4 angled decorative panels |
| Coverage | Three external walls finished with wood-effect sheet panels |
|---|---|
| Appearance | Timber-look architectural finish |
| Coordination | Final colour, grain and sheet layout to approved elevations |
| Guttering | PVC gutter |
|---|---|
| Flashings | Sheet-metal flashings included |
| Roof sealants | Included |
| Ventilation grilles | Included as external finishing components |
Scope, responsibilities and assumptions
Included in the special-offer shell
- 10.35m × 6.00m portable modular building shell
- Steel structural frame with anti-corrosion protection
- 160mm PIR-core mono-pitch roof panels
- PVC roof membrane
- 120mm PIR-core external wall panels
- Insulated steel floor structure
- 22mm OSB floor deck
- One glazed aluminium entrance door, approx. 1.10m × 2.10m
- Approx. 1.80m tubular entrance-door pull handle
- Two fixed angled PVC windows, approx. 2.45m × 2.00m, with Golden Oak external finish
- Two fixed angled PVC windows, approx. 1.20m × 2.00m
- Two tilt-opening angled PVC windows, approx. 1.20m × 2.00m
- Tinted glazing
- Three-sided architectural parapet
- Two front corner cassette features
- Additional three-sided pavilion parapet
- Four angled decorative panels
- Wood-effect sheet-panel finish to three external walls
- PVC gutter
- Sheet-metal flashings
- Roofing sealants
- Ventilation grilles
Excluded / client or site scope
- Level prepared base constructed to the project design or KC requirements
- Groundworks and foundations
- Prepared electrical service entry points within the base
- Prepared water and foul-drainage service entry points within the base
- Electrical installation
- Water and drainage installation
- Final electrical connection
- Final water and foul-drainage connections
- Decorative floor finish such as laminate or PVC covering
- Internal partition walls
- Internal doors
- Unloading crane
- 3m lifting spreader beam
- Any specialist interior finishes or fit-out not expressly listed
Project assumptions
- The prepared base is level and completed to the approved foundation or support details
- Utility entry points are prepared before delivery where required
- Suitable delivery and crane access is available
- The final intended use is confirmed before order
- Window and door positions correspond to the approved elevations
- Internal fit-out is designed separately from the shell offer
- Any statutory approval requirements are confirmed for the proposed site and use
The shell-and-core specification intentionally excludes internal flooring finishes, partition walls, internal doors, electrical installation and water/drainage installation. The signed quotation and approved drawings take precedence over website descriptions.
How the project progresses
- Reserve the special-offer building Confirm availability, site postcode, intended use and the commercial terms of the shell-and-core offer.
- Confirm the site and base Review the prepared level base, service entry points, access route and lifting requirements.
- Approve elevations Confirm the feature glazing, aluminium entrance door, parapets, decorative panels and wood-effect wall finishes.
- Confirm fit-out responsibilities Agree who will provide internal partitions, flooring, electrical installation, plumbing and final services.
- Delivery and unloading Coordinate transport and the required unloading crane and spreader beam. These are excluded unless separately added to the quotation.
Special-offer design
V-Design Portable Modular Pavilion
Architectural shell-and-core modular building with angled glazing, strong parapet detailing and wood-effect external elevations.
- External size
- 10.35m × 6.00m
- Approximate area
- 62.10m²
- Specification
- Shell & core
- Feature glazing
- Angled fixed and opening PVC windows
Frequently asked questions
What is included in this portable modular building shell?
The shell includes the steel structure, 160mm PIR-core insulated roof, 120mm PIR-core insulated walls, structural floor with 22mm OSB deck, aluminium entrance door, specified angled PVC windows, architectural parapets, decorative panels, wood-effect exterior wall finishes, guttering, flashings and roofing finishing components.
How large is the building?
The external dimensions are 10.35m × 6.00m, giving an approximate gross external footprint of 62.10m².
Is the building supplied fully finished inside?
No. This is a shell-and-core offer. Decorative flooring, internal partitions, internal doors, electrical installation and water/drainage installations are excluded.
Is electrical installation included?
No. The electrical installation and final mains connection are excluded from the standard shell-and-core scope.
Is plumbing included?
No. Water and drainage installations and the final site connections are excluded unless separately quoted.
Are internal partition walls included?
No. The building is supplied as an open shell. Partition walls and internal doors are excluded.
Is finished flooring included?
The shell includes the structural floor with 22mm OSB deck. Laminate, PVC flooring or other decorative floor finishes are excluded.
What windows are included?
The specification includes two large fixed angled PVC windows approximately 2.45m × 2.00m, two fixed angled windows approximately 1.20m × 2.00m and two tilt-opening angled windows approximately 1.20m × 2.00m. Tinted glazing is specified.
Is a crane included?
No. The unloading crane and 3m spreader beam are excluded unless they are separately included in the written quotation.
What must be ready before delivery?
A level prepared base must be complete to the agreed design or KC requirements. Required electrical, water and drainage service entry points should also be prepared where applicable.
Can the building be fitted out as an office or showroom?
Yes. The shell can be developed into office, showroom, marketing, sales or other commercial accommodation, subject to the required internal design, services and statutory approvals.
Is this a finished turnkey modular building?
No. This product is deliberately offered as shell and core. A separate fit-out package can be discussed if a completed interior is required.
Request the special-offer V-design modular building quotation
Send the site postcode, intended use and required fit-out level. We will confirm availability, shell-and-core scope, transport requirements and any optional interior works.
