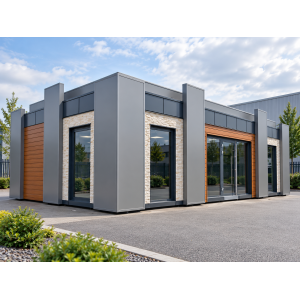

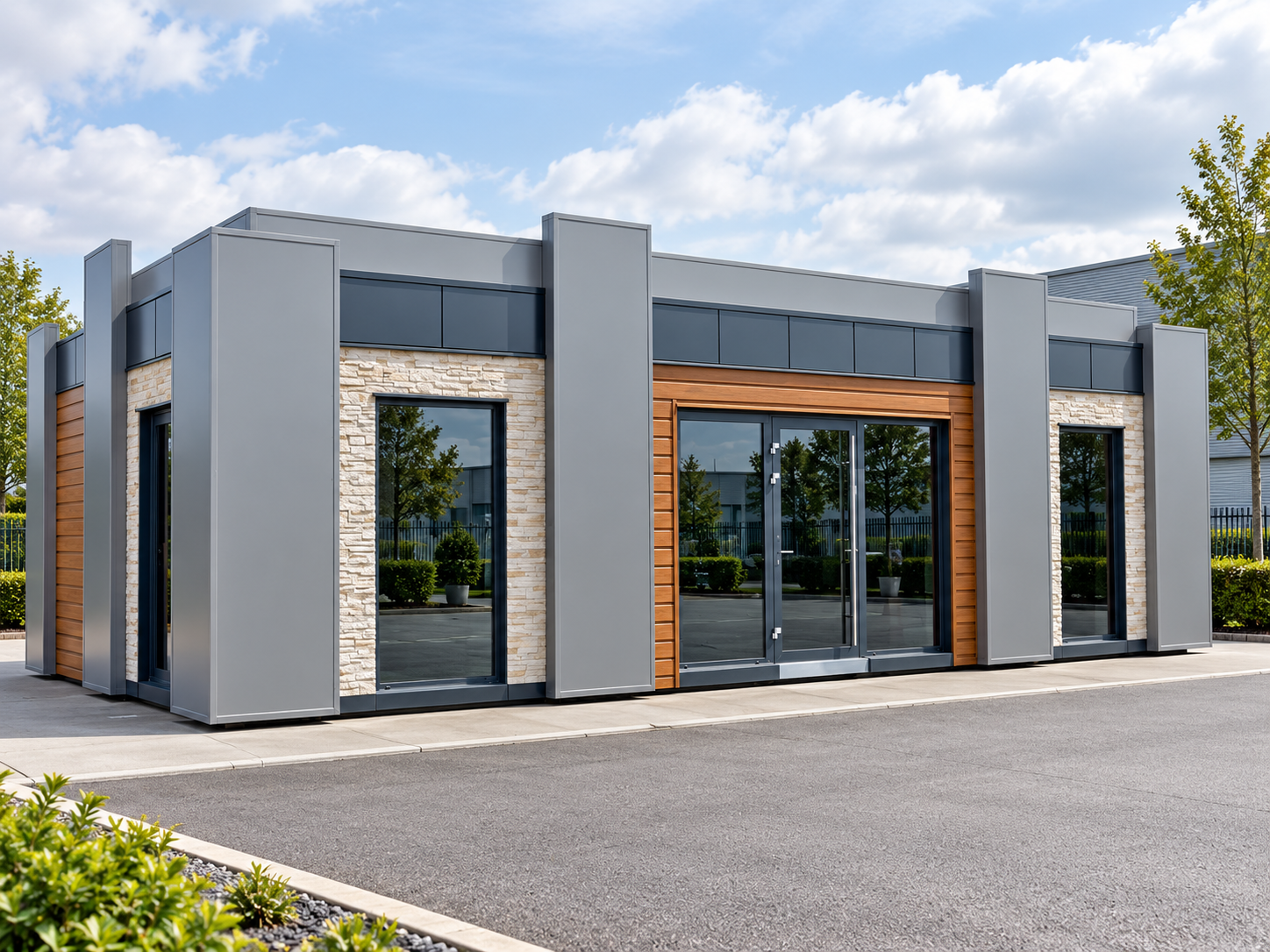

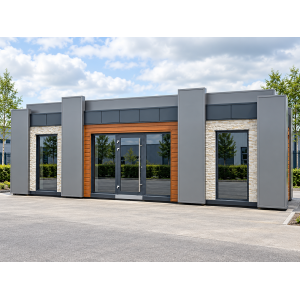

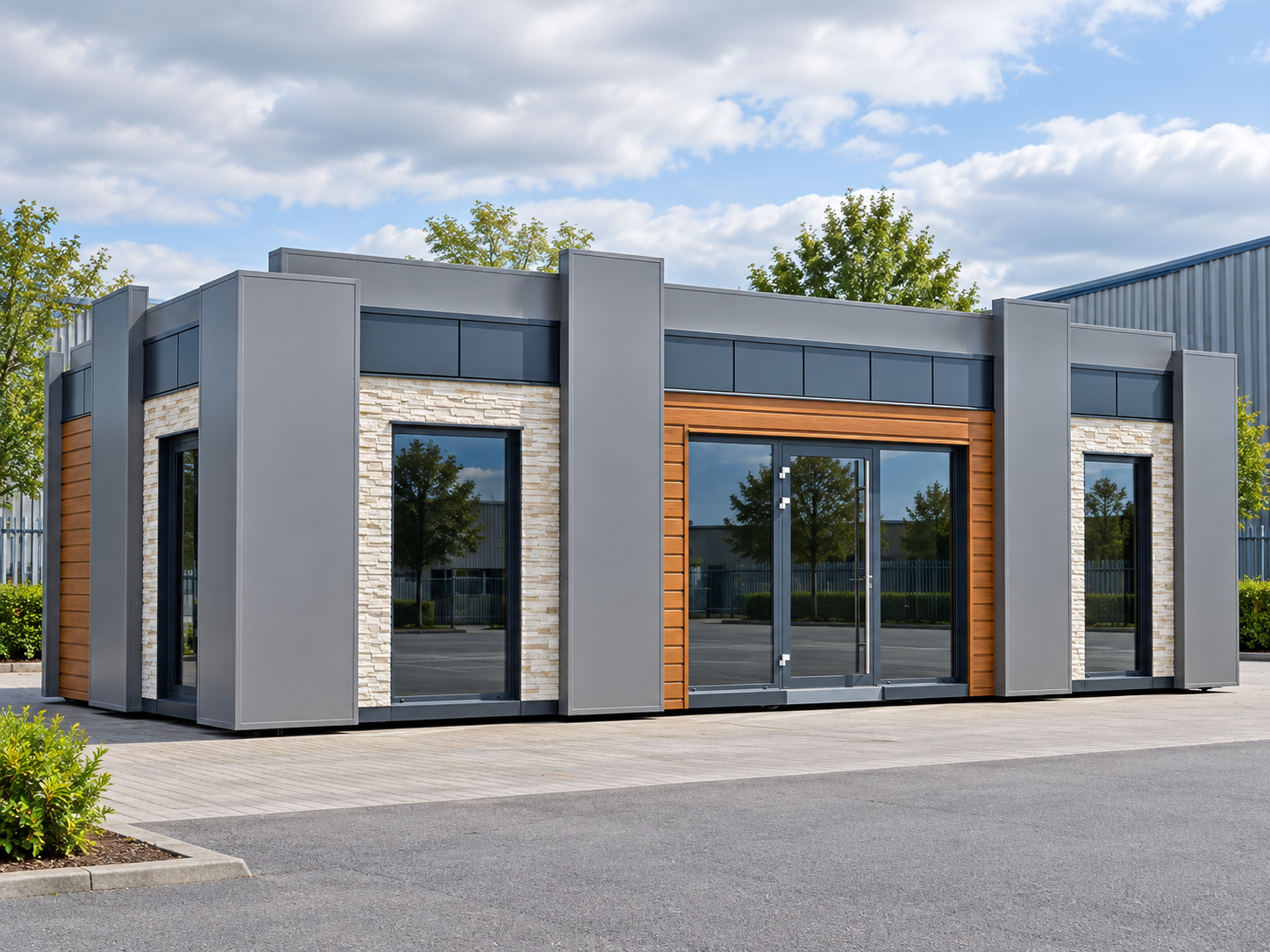

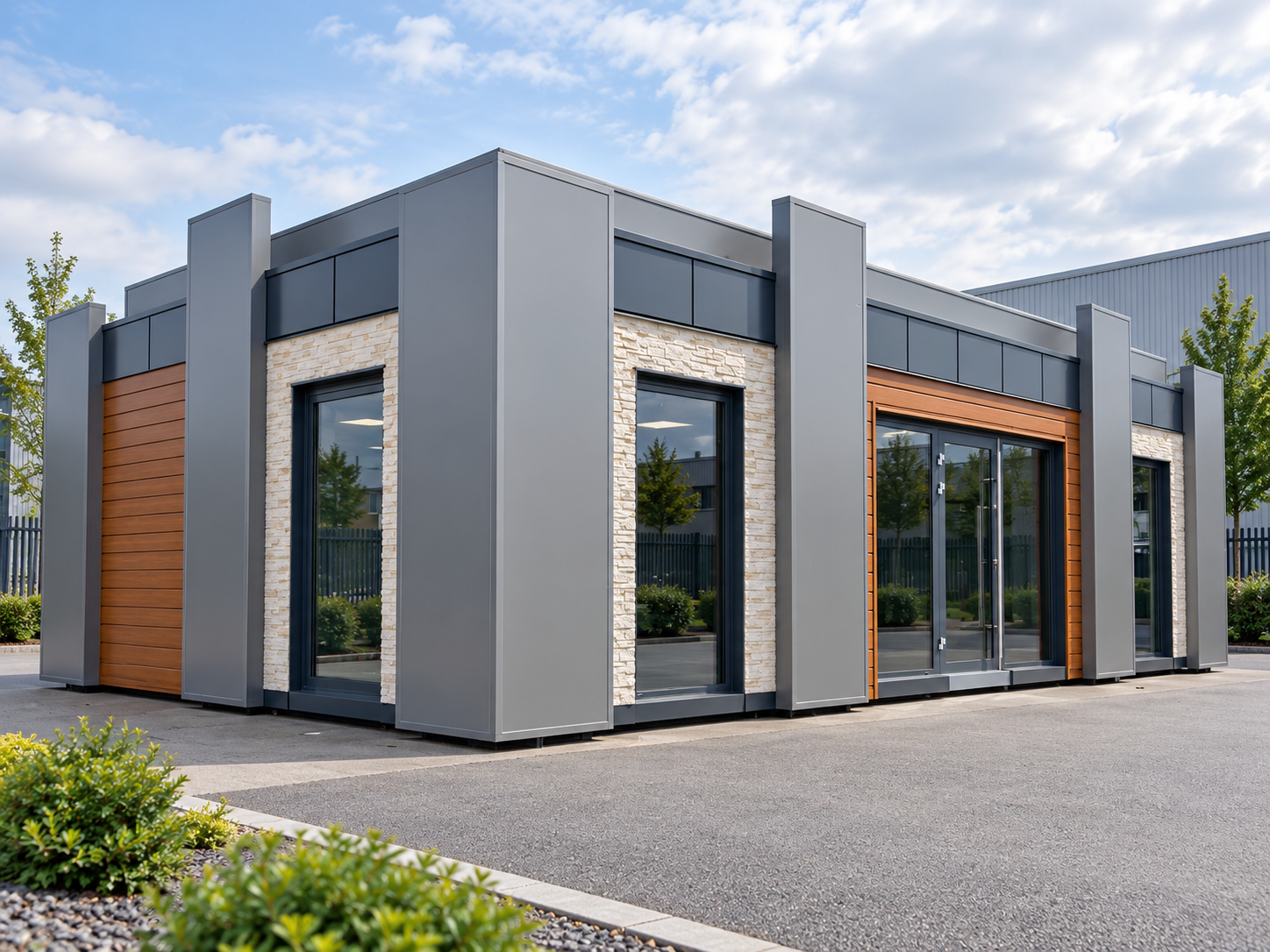

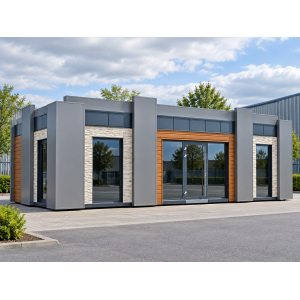

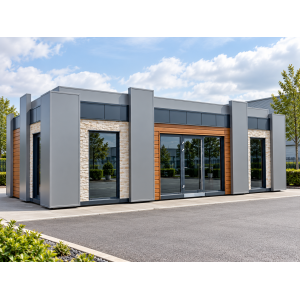

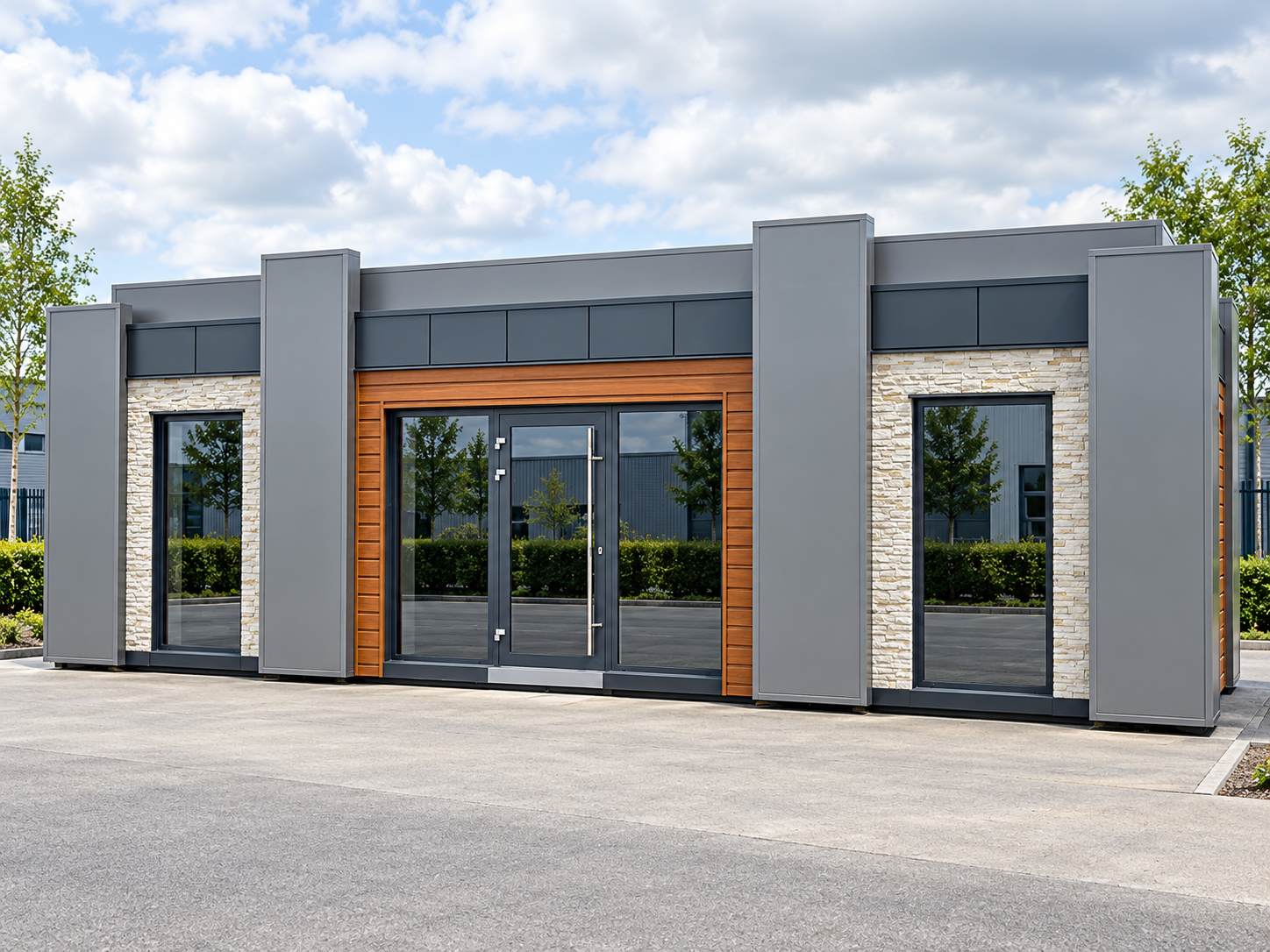

Stone Model Modular Showroom Building – 11m × 6m Shell & Core
£55,750.00+ VAT — £66,900.00 incl. VAT
Stone Model modular showroom building – 11m × 6m, supplied shell and core with 66m² of gross external footprint, 120mm PIR roof and wall panels, laminated safety double glazing, stone façade cladding and Golden Oak-effect steel sheeting. Delivery and an assembly team are included; internal fit-out and crane unloading are separately agreed.
- External dimensions
- 11.00m × 6.00m
- Gross external footprint
- 66.00m²
- Supply stage
- Shell & core
- Roof / wall panels
- 120mm PIR / 120mm PIR
- Glazing
- Laminated safety double glazing; dark glass
- Delivery & assembly team
- Included in the stated supply scope
Product price
£55,750.00 + VAT
£66,900.00 incl. VAT
Order total
£55,750.00 + VAT
£66,900.00 incl. VAT
Availability
Available to order
Delivery and provision of an assembly team are included in the stated £55,750 + VAT supply scope. Confirm the postcode, access, team tasks and programme with the order. The unloading crane and 3m spreader beam are separately agreed. Groundworks, utility preparation and internal fit-out are not included unless expressly added.
The included 22mm OSB deck is a structural floor surface, not a decorative floor covering. Electrical and plumbing installations, finished flooring, partitions, internal doors, the prepared base and crane unloading are separately agreed. Technical documentation is available for adaptation; local adaptation work and the three-copy document package require agreement.
Available to order
Stone Model | Commercial showroom shell
An 11m × 6m modular showroom building with stone and Golden Oak-effect elevations
The Stone Model modular showroom building provides a 66m² gross external shell for a separately planned showroom, sales office or customer-facing commercial interior. Stone façade cladding, Golden Oak-effect steel panels and raised decorative features give the exterior a distinctive architectural appearance.
The building envelope includes a steel construction frame, 120mm PIR-core wall panels, 120mm PIR-core roof panels with a protective membrane, and an insulated, double-coated steel floor finished with a 22mm OSB structural deck. The floor covering and internal layout are left for the agreed fit-out.
One single aluminium entrance door and six UPVC windows are specified, all at 1100 × 2100mm. Four windows are fixed and two are openable. The door and window glazing is laminated safety double glazing with dark glass; the opening method for the two openable windows is confirmed in the window schedule.
The architectural package includes a V-shaped decorative arch consisting of ten pieces, a decorative crown across the front and both sides, a raised roof cover and an integrated gutter system. The approved elevations define the relationship between these features and the stone and Golden Oak-effect finishes.
Delivery and an assembly team are provided within the stated price. The crane and specified 3m spreader beam are separately arranged. Electrical and water/drainage installations, partitions, internal doors and final floor coverings are not part of the shell price.
Browse the modular showroom range and sales-suite buildings for other layouts. Each model has its own specification and supply scope.
11m × 6m
66m² gross footprint
Shell & core
120mm PIR roof & walls
Stone & Golden Oak-effect façade
Delivery & assembly team included
- External footprint
- 11.00m × 6.00m
- Gross external area
- 66.00m²
- Roof panel
- 120mm PIR-core
- Wall panel
- 120mm PIR-core
- Window schedule
- 4 fixed + 2 openable
- Internal fit-out
- Separately agreed
Applications and layout options
Primary proposed use
Modular Showroom Building
Fit out the shell for product displays, samples and customer appointments. Display weights, circulation, lighting, furniture and equipment are established in the separate interior design.
Property development
Modular Sales Office
Use the Stone Model shell as a base for buyer consultations, development plans and sales administration. The sales-office layout, services and branded displays are separately specified.
Customer-facing workspace
Commercial Reception & Office
An office or reception fit-out can be developed within the 11m × 6m building. Required partitions, sanitary provision, electrical installation and climate control are agreed before occupation.
Retail & display
Stone-Clad Commercial Pavilion
The stone-clad modular building can provide a shell for a display-led retail or visitor environment, subject to the site, intended use, completed fit-out and applicable approvals.
Indicative product specification
Use this table as a configuration guide. The written quotation and approved drawings control the final product, interfaces and project-specific compliance.
| Model | Stone Model |
|---|---|
| External dimensions | 11.00m × 6.00m |
| Gross external footprint | 66.00m², calculated from the supplied dimensions; not net usable internal area |
| Supply stage | Shell & core; internal fit-out separately agreed |
| Height and module division | Internal height, external height, module count and transport divisions to be confirmed in the order drawings |
| Commercial basis | Listed building specification with delivery and assembly-team provision included |
| Primary structure | Steel construction frame |
|---|---|
| Floor structure | Insulated steel floor, double coated as specified |
| Floor deck | OSB / aspenite structural board, 22mm overall thickness |
| Floor insulation | Included; material and thickness are not stated in the supplied model specification |
| Final floor finish | Laminate, PVC or another decorative covering to separate agreement |
| Engineering information | Structural loads, support positions and lifting details to the approved model and site documentation |
| External walls | 120mm sandwich panels with PIR insulation core |
|---|---|
| Roof panels | 120mm sandwich panels with PIR insulation core |
| Roof waterproofing | Special protective membrane; material, brand and thickness to the agreed roof schedule |
| Drainage | Built-in gutter system |
| Roof feature | Raised roof cover as listed in the architectural specification |
| Performance information | Thermal values and fire-performance classifications to the selected panel documentation; no numerical U-value or fire rating is specified in this brief |
| Quantity | 1 single entrance door |
|---|---|
| Material | Aluminium |
| Door size | 1100 × 2100mm |
| Glazing | Laminated safety double glazing |
| Glass appearance | Dark glass |
| Opening and threshold | Handing, hardware, clear opening and threshold details confirmed in the opening schedule |
| Fixed windows | 4 × fixed UPVC windows, 1100 × 2100mm each |
|---|---|
| Openable windows | 2 × openable UPVC windows, 1100 × 2100mm each |
| Opening arrangement | Exact operation of the two openable windows to be confirmed; no tilt-and-turn assumption is made |
| Glass specification | Laminated safety double glazing with dark glass |
| Total window count | 6 windows in addition to the aluminium entrance door |
| Final schedule | Window positions, frame colours, glass build-up and declared performance confirmed for the order |
| Stone finish | Façade stone cladding included |
|---|---|
| Wood-effect finish | Steel-sheet façade cladding in Golden Oak effect included |
| Decorative arch | V-shaped decorative arch consisting of 10 pieces, as listed in the supplied specification |
| Decorative crown | Covers the front and both sides |
| Raised feature | Raised roof cover included |
| Material and coverage schedule | Stone product, steel finish, exact colours and the extent of each material to the approved elevations; natural stone, solid timber and exact RAL codes are not assumed |
| Electrical installation | Separate agreement; not included in the stated shell |
|---|---|
| Water and drainage installation | Separate agreement; not included in the stated shell |
| Decorative flooring | Separate agreement; the 22mm OSB structural deck is included |
| Partitions and internal doors | Separate agreement |
| Heating, cooling and lighting | Not specified as included; establish the required systems in the fit-out schedule |
| Furniture and display equipment | Not specified as included |
| Ready-to-use status | The shell requires the agreed fit-out, site connections and applicable approvals before its intended occupied use |
| Delivery | Included in the stated £55,750 + VAT supply scope |
|---|---|
| Assembly team | Provided as part of the stated supply scope |
| Assembly tasks | Agree the team tasks, attendance, site facilities, work sequence and handover boundary in the order |
| Crane unloading | Separate agreement; not included in the stated shell supply scope |
| Spreader beam | 3m spreader beam listed for unloading; the final handling arrangement follows the agreed lifting plan |
| Programme | Confirmed with the order; no manufacturing or delivery lead time is supplied for this model |
| Prepared base | Level base to the project design or agreed supplier requirements; separately arranged |
|---|---|
| Service entries | Electrical, water and foul-drainage entries in the base prepared where required by the final services layout |
| Available documentation | Technical documentation is available for adaptation as stated in the supply description |
| Local adaptation | Local design adaptation, engineering responsibilities, language and jurisdiction-specific content to separate agreement |
| Three-copy document package | Technical documentation for adaptation in three copies is also listed as an item to be agreed; the final pack is not assumed included |
| Scope distinction | Availability of base technical information is retained without presenting a completed local approval package as included |
| Supporting information | Final drawings and component documentation identify the delivered building specification |
|---|---|
| Manufacturer clarification | Any manufacturer certifications or component approvals relate to the relevant manufacturer, product and documented scope, not to KC Cabins Solutions Ltd unless expressly stated otherwise |
| Project review | Confirm the planning, Building Regulations, fire-safety, access and services requirements applicable to the intended site and use |
| No blanket certification claim | No whole-building energy rating, fire-resistance rating or specific manufacturer certification is established by the supplied Stone Model brief |
Scope, responsibilities and assumptions
Included in the stated Stone Model supply price
- 11.00m × 6.00m Stone Model building shell
- Steel construction frame
- 120mm PIR-core external wall sandwich panels
- 120mm PIR-core roof sandwich panels with protective membrane
- Built-in gutter system
- Insulated, double-coated steel floor with 22mm overall-thickness OSB deck
- 1 single glazed aluminium entrance door, 1100 × 2100mm
- 4 fixed UPVC windows, 1100 × 2100mm each
- 2 openable UPVC windows, 1100 × 2100mm each
- Laminated safety double glazing with dark glass to the specified door and windows
- V-shaped decorative arch consisting of 10 pieces
- Decorative crown across the front and both sides
- Raised roof cover
- Golden Oak-effect steel-sheet façade cladding
- Façade stone cladding
- Delivery
- Provision of an assembly team
- Technical documentation available for adaptation; adaptation scope and three-copy package separately agreed
Separately agreed / not included in the stated shell
- Level prepared base and associated groundworks or foundations
- Preparation of electrical service entry points in the base
- Preparation of water and foul-drainage entry points in the base
- Local adaptation of technical documentation and the agreed three-copy document package
- Electrical installation and final mains connection
- Water and drainage installation and final site connections
- Decorative floor coverings, including laminate or PVC flooring
- Internal partition walls and internal doors
- Unloading crane and the listed 3m spreader beam
- Other interior systems, furniture or equipment unless expressly added to the written order
Items to agree before manufacture and delivery
- The intended use, site postcode and required fit-out are confirmed
- The approved drawings define openings, roof features, cladding coverage and module divisions
- The prepared base and support arrangement meet the agreed project requirements
- The delivery route, access and lifting arrangements are reviewed
- Assembly-team responsibilities are distinguished from crane hire and interior fit-out
- Required service entries are coordinated before the base is completed
- Technical-documentation availability and local adaptation deliverables are recorded separately
- Any changes to the stated supply scope, price or programme are agreed in writing
The price covers the stated shell, exterior specification, delivery and assembly-team provision. It is not a turnkey occupied showroom price. The signed quotation and approved drawings define the final supply, adaptation, lifting and fit-out responsibilities.
How the project progresses
- Choose the Stone Model Buy the stated modular showroom building specification or discuss changes before ordering. Confirm the intended showroom, sales-office or commercial use.
- Review the site Confirm the postcode, prepared base, route, crane access and planned electrical, water and drainage interfaces.
- Approve the specification Agree the opening schedule, stone and Golden Oak-effect finishes, decorative arch, crown, roof cover and available technical documentation.
- Define the fit-out Allocate internal partitions, doors, floor finishes, electrics, plumbing and any additional services to a separately agreed scope.
- Deliver and assemble Arrange the included delivery and assembly team alongside the separately organised unloading crane and spreader beam. Confirm the order-specific programme and handover tasks.
Frequently asked questions
What is the Stone Model modular showroom building?
It is an 11m × 6m steel-frame building supplied as a shell and core, with PIR insulated roof and walls, laminated safety double glazing, stone cladding and Golden Oak-effect steel panels. Its interior is fitted out separately for the agreed use.
What is the listed price?
The stated price is £55,750 excluding VAT. With the configured 20% VAT rate, the product amount is £66,900 including VAT. Delivery and provision of an assembly team are included; the separately agreed items are additional.
What size is the building?
External dimensions are 11.00m × 6.00m, giving a calculated gross external footprint of 66.00m². Net internal area and internal height are confirmed on the final drawings, not inferred from another model.
What roof and wall insulation is included?
Both the roof and external walls use 120mm sandwich panels with PIR insulation cores. The roof also has a protective membrane. Its material and specification are confirmed in the roof schedule.
Are the windows double or triple glazed?
The specified windows and aluminium entrance door have laminated safety double glazing with dark glass. Triple glazing is not the stated Stone Model specification.
How many doors and windows are supplied?
The schedule specifies one single aluminium entrance door, four fixed UPVC windows and two openable UPVC windows. Each is stated at 1100 × 2100mm. The exact operation of the openable windows is agreed separately.
Are stone cladding and Golden Oak finishes included?
Yes. The exterior specification includes façade stone cladding and steel-sheet cladding in Golden Oak effect, together with the ten-piece decorative arch, front-and-side crown and raised roof cover. Exact products, colours and coverage follow the approved elevations.
Does shell and core include a finished floor and electrics?
No. The included floor ends at the 22mm OSB structural deck. Decorative flooring, electrical and water/drainage installations, internal partitions and internal doors are separately agreed.
Are delivery, assembly and crane unloading all included?
Delivery and an assembly team are included. The unloading crane and the listed 3m spreader beam are separate-agreement items. The written order defines the team tasks and distinguishes building assembly from fit-out, lifting and final service connections.
What technical documentation is supplied?
Technical documentation is available for adaptation. The brief also lists adaptation documentation in three copies for separate agreement. Confirm the base documents, local adaptation work, language, content and final copy requirements in the order.
Can this be fitted out as a modular sales office?
Yes, the shell can be planned for sales consultations, reception, displays or office work. Those uses require an agreed interior layout, services, access arrangements and any applicable approvals; they are not completed fit-outs included with the shell.
Do I need permission or approval for the installation?
Confirm the requirements for the site and intended use before ordering. Planning permission and Building Regulations approval are separate matters. See GOV.UK planning guidance and Building Regulations approval guidance; check the relevant jurisdiction for the project.
What is the delivery programme?
No fixed manufacturing or delivery lead time is stated for this model. Confirm the programme when the specification, site arrangements and order terms are agreed.
Where can I view the wider catalogue?
Download the KC Bespoke Collection catalogue (PDF). It is a wider-range design reference; the Stone Model schedule and approved drawings define this product's inclusions.
Buy the Stone Model or discuss your showroom fit-out
Send the delivery postcode, intended use and required interior fit-out. Confirm the included delivery and assembly-team provision, separately arranged crane, technical-documentation scope and order programme before manufacture.
