Curry Wimbledon modular nursery building for sale, measuring 12.60m × 6.30m with 79.38m² of gross external floor area. The retained KC Bespoke nursery package includes insulated steel-frame construction, internal partition panels, triple-glazed laminated windows, SPC flooring, scheduled sanitary fittings and finishes, and heat-pump heating and cooling.
Model / range
Curry Wimbledon / KC Bespoke
External dimensions
12.60m × 6.30m
Gross external floor area
79.38m²
Supply basis
New fitted nursery building specification; available to order
The stated £117,482 + VAT is the supplied building price. Inclusion and pricing of delivery, offloading, lifting and on-site assembly must be confirmed for this model in the written quotation. Zero additional-delivery fields are unset amounts, not a free-delivery promise. Groundworks, foundations, final mains connections and external nursery works are separate unless expressly agreed.
The approved nursery layout and schedules define usable areas, child places, openings, room quantities and building services. Furniture, learning resources, planters, fencing, play items and landscaping in the visualisation are not automatic inclusions. Delivery and assembly terms must be agreed before purchase.
A modular nursery building for sale with a 12.6m glazed frontage
Curry Wimbledon provides a 12.60m × 6.30m rectangular building for early years play, learning and care. Its 79.38m² gross footprint is developed into activity and support spaces through an agreed nursery floor plan, with the supplied building price of £117,482 + VAT.
This is a new modular building for installation on the customer’s prepared site. The offer is not an operating childcare business, a nursery-place booking, a property lease or land. Curry Wimbledon is the supplied model designation; no particular customer, completed project or Wimbledon site is established by this listing.
The illustrated design combines dark architectural panels, a prominent red entrance surround and tall glazing. That façade can provide a clear arrival point, while the final plan must resolve supervised access, internal routes, activity space and the connection to outdoor play. The picture does not establish the final door count, accessible threshold or escape arrangement.
The retained KC Bespoke nursery specification includes a steel frame, Kingspan insulated panel systems, 100mm internal partition panels, a 160mm roof assembly with Protan membrane, triple glazing with laminated safety glass, Class 42 SPC flooring, scheduled sanitary finishes and air-to-air heat-pump heating and cooling. It is not a shell-and-core offer.
Within 79.38m² gross external area, play and learning space must be balanced with toilets, changing, storage, quiet or rest provision and staff needs. A measured layout establishes usable childcare space; the external footprint cannot be used as a promised number of child places.
The latest Curry Wimbledon brief supplies the building price but does not specify whether delivery and assembly are included. Confirm transport, offloading, lifting and assembly responsibilities in the written quotation. Foundations, final mains connections, external works and loose equipment outside the signed schedules remain separate.
Develop activity, quiet, hygiene and support accommodation around the nursery’s age groups and operating brief. Curry Wimbledon is a new building purchase, not an offer of childcare places.
Schools and academy trusts
Early Years Buildings for School Sites
Plan dedicated nursery or preschool accommodation with agreed staff access, parent arrival, service connections and outdoor routes. Any link to an existing school is a separate design and scope item.
Existing nursery providers
Prefabricated Nursery Building for Expansion
Assess the 79.38m² footprint for additional activity and support rooms. The layout must demonstrate what fits and any dependence on existing facilities; no room or child-place count is assumed.
Site planning
Portable Nursery Accommodation
Discuss transport sections and any future relocation requirement during design. A future move depends on structure, condition, lifting access, services and the receiving site and is separately scoped.
Indicative product specification
Use this table as a configuration guide. The written quotation and approved drawings control the final product, interfaces and project-specific compliance.
Curry Wimbledon modular nursery building configuration
Product line
KC Bespoke nursery specification
Model
Curry Wimbledon
External dimensions
12.60m × 6.30m
Gross external floor area
79.38m² calculated from the external dimensions; not net usable childcare activity area
Building form
Single-storey rectangular design shown
Supply basis
New fitted building specification for purchase; available to order
Module division
Final module count, transport dimensions, connections and lifting details to approved drawings
Internal height
Confirmed on project sections; no numerical clear height supplied
Model identity
Curry Wimbledon is the model designation; no named childcare-operator affiliation, delivered project or restricted geographic service area is asserted
Purchase scope for the 12.6m nursery building
Building price
£117,482 + VAT for the stated building specification
Included fit-out basis
Partition panels, SPC flooring, scheduled doors and glazing, sanitary fittings and finishes, and heat-pump heating and cooling
Detailed schedules
Room, fixture, electrical, lighting, ventilation, alarm, hot-water and access-control schedules to be agreed before manufacture
Delivery and assembly
Inclusion and any additional charges must be confirmed for Curry Wimbledon; previous model terms are not automatically transferred
Separate site scope
Groundworks, foundations, final mains connections, external nursery works and items outside the signed schedules
Purchase type
Building supply, not a nursery-business acquisition, land sale, childcare service or property lease
Availability
Available to order; no fixed stock quantity or immediate-despatch date stated
Nursery building design — activity, arrival and support space
Activity allocation
Plan learning, play and quieter activity areas around the nursery brief within the 12.60m × 6.30m footprint
Controlled arrival
Coordinate the entrance, parent waiting, staff supervision and access-control requirements
Glazed frontage
Review daylight, solar gain, privacy, manifestation, safe opening arrangements and the relationship to outdoor areas
Support facilities
Agree toilets, changing, handwashing, storage, staff accommodation and food-preparation requirements
Circulation and supervision
Resolve routes and sightlines without counting circulation and support rooms as usable activity space
Accessibility and evacuation
Assess site approach, thresholds, door clearances, escape arrangements and sanitary access through the approved design
Outdoor interface
Separate external paths, fences, gates, play surfacing and equipment from the building fit-out schedule
Capacity planning for early years buildings — England
Area basis
Child-place assessment uses qualifying usable activity-room space, not the 79.38m² gross external footprint

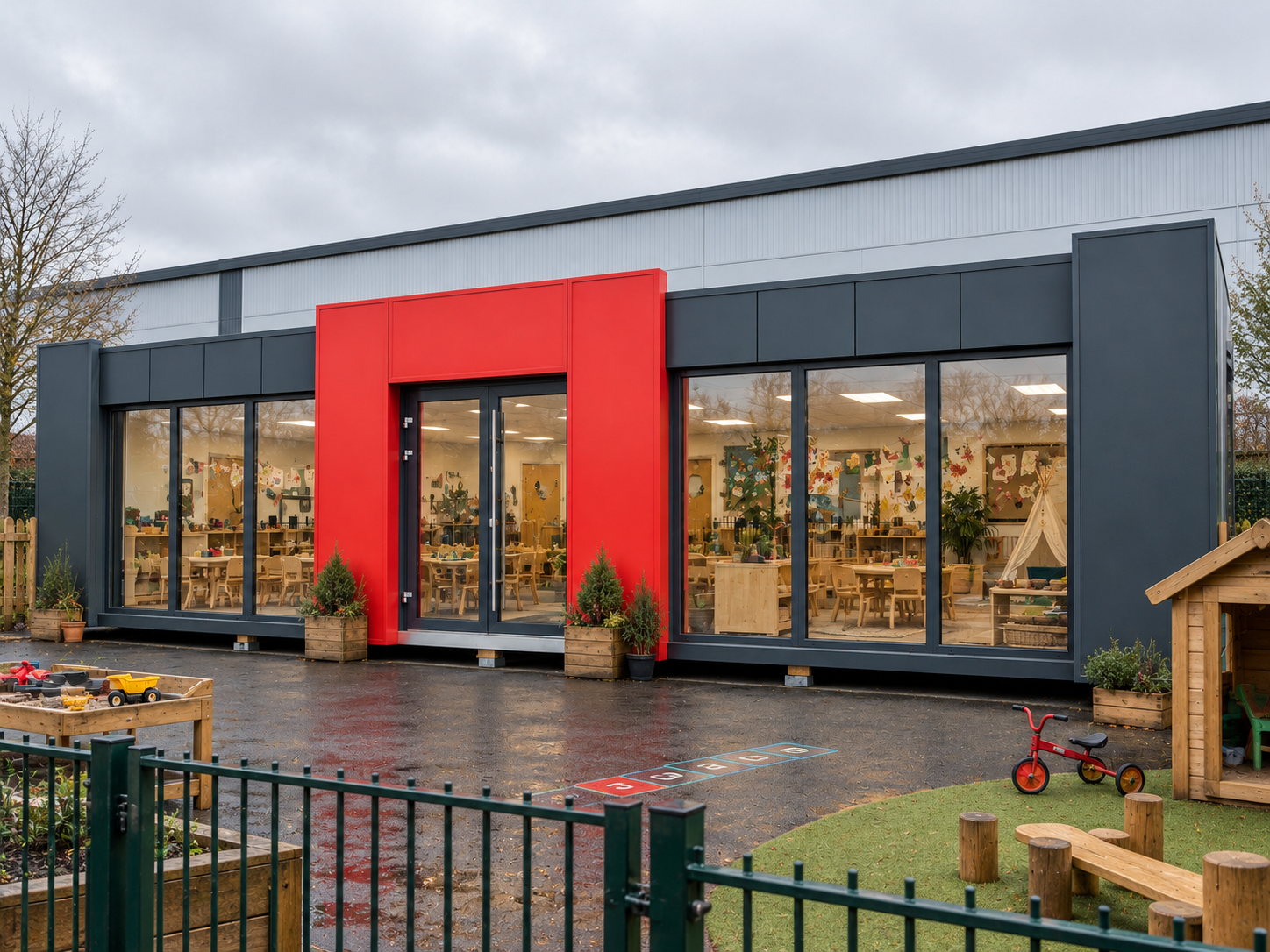

Design visualisation, not a verified completed nursery project or measured floor plan
Building appearance
Red entrance surround, dark façade panels and tall glazing as illustrated; exact colours and layout to approved samples and elevations
Background building
The larger building visible behind the nursery is not part of the stated 12.60m × 6.30m product
Floor and access levels
Visible supports and thresholds do not establish the final foundations, access design or readiness for occupation
Furniture and equipment
Tables, chairs, resources, toys, storage and visible lighting do not establish an included equipment inventory
Outdoor works
Planters, playhouse, vehicles/toys, fencing, marked play areas, paths and landscaping are separate unless expressly itemised
Steel structural frame
Primary frame
High-strength closed steel profiles
Protection
Anti-corrosive coating to structural steel
Construction format
Factory-manufactured modular steel-frame building
Engineering
Member sizes, module connections, support reactions and lifting details to project-specific structural design
Insulated wall panels for the nursery building
External wall panel
Kingspan KS1000/1150 TL panels or an approved equivalent
Specified U-value
0.18 W/m²K
Reaction-to-fire reference
EN 13501-1 B-s2,d0 as supplied; verify the classification for the selected panel
Fire-resistance references
EW 45 (o↔i), stated 4m span; EI 30 (o↔i), stated 7.5m span, as provided in the technical brief
Acoustic reference
25 (-3,-5) dB as supplied for the panel; not a room-to-room or whole-nursery acoustic rating
Installation
Vertical or horizontal where supported by the exact selected system and its fixing details
Optional core alternative
Mineral-wool core may be separately specified; it is not the default QuadCore core
Evidence
Panel thickness, span, orientation, fixings and junctions must match supporting manufacturer documentation
Internal partitions & FD30 doorsets
Partition panels
Kingspan QuadCore KS1150TL, 100mm
Panel finish
Double-sided white finish
Layout
Partitions to the agreed nursery floor plan; movable partitions are not specified
Internal fire doors
FD30 doorsets to the approved fire and opening schedule
Smoke control
Smoke-control seals and compatible hardware specified as part of the complete doorset where required
Nursery acoustic design
Room acoustics and sound separation require a layout-specific assessment; additional acoustic treatments must be scheduled
Child safety hardware
Finger protection, closers, restrictors and controlled opening arrangements to the final safety and ironmongery schedule
160mm roof assembly & Protan membrane
Insulated assembly
160mm Kingspan QuadCore KS1150TL specified within the roof build-up
Specified roof U-value
0.11 W/m²K
Roof membrane
Protan SE 2.0
Membrane detailing
Welded seams, UV resistance and product fire performance to the membrane specification
Roof design
Panel suitability, support, substrate, falls, outlets and membrane compatibility must be confirmed for the complete assembly
Solar option
Solar equipment is not included; any later installation requires a structural, fixing and roof-compatibility review
SPC nursery flooring & insulated floor construction
Structure
Insulated steel floor system
Specified floor U-value
0.11 W/m²K for the complete floor build-up
Structural deck
18mm cement-bonded chipboard
Finished flooring
SPC rigid-core vinyl
Use classification
Class 42 as specified
Appearance
Wood or stone texture selected from the agreed range
Water resistance
Waterproof SPC product; joints, edges and wet areas must be detailed to the selected installation system
Nursery suitability
Confirm slip performance, thresholds, cleaning regime and wet-play requirements for the selected floor product; no specific slip or impact-cushioning rating is claimed
Triple glazing, safety glass & entrance doors
Window frames
Multi-chamber UPVC
Window glazing
Triple glazing with laminated safety glass
Specified window U-value
0.9 W/m²K
Entrance doors
Aluminium entrance doors with RAL colour selection and high-security locking
Specified door U-value
1.1 W/m²K
Feature elevation
Curry Wimbledon glazed frontage and entrance-surround treatment to approved elevations. No opening quantity, shape, dimension or safety performance is inferred from the image.
Child-safety coordination
Agree impact-safe glazing, manifestation, restrictors, guarding where needed and safe operating heights
Daylight and summer comfort
Review orientation, solar gain, glare, shading and ventilation; large areas of glass alone do not establish comfort
Opening schedule
Exact dimensions, quantities, positions and the laminated-glass specification to the final schedule
Sanitary finishes & nursery hygiene
Sanitary system
GEBERIT wall-hung toilets to the agreed sanitary schedule
Storage
Quality under-sink cabinets
Wall panels
Rocko Tiles, 2800 × 1230 × 4mm in vertical format
Wet-area finish
Waterproof, easy-clean finishes with joints and penetrations detailed for the selected system
Nursery-specific schedule
Confirm child-height fittings, adult facilities, nappy-changing provision and handwashing points before order sign-off
Water and drainage
Internal routing, hot-water provision, temperature control and external service interfaces to the agreed mechanical specification
Heating, cooling & the complete services schedule
Included climate control
Air-to-air heat pump for heating and cooling
Specified SCOP
4.5, subject to the selected equipment and declared operating conditions
System selection
Heating and cooling capacity, zones, indoor-unit position and noise criteria coordinated with occupancy and room use
Ventilation
Fresh-air supply and wet-area extraction must be designed separately; an air-to-air heat pump is not a fresh-air ventilation system
Electrical and lighting schedule
Confirm circuits, sockets, lighting, emergency lighting, detection, alarms, data and access-control scope in the written order
Hot water and food preparation
Confirm equipment and capacity for handwashing, changing and any food-preparation activity; no kitchen appliance package is stated
Steel elevation panels & included standard colours
No surcharge for the listed standard steel cladding and flashing finishes
Final appearance
Agree the Curry Wimbledon cassette layout, entrance surround and colours from approved elevations and samples. The illustrated red, dark grey and lighter parapet do not establish exact RAL codes.
Optional wood-effect, brick-slip & stone façades
Wood-effect options
Golden Oak, Dark Walnut and Winchester; premium upgrade
Brick-slip options
Nicea 1 / Nicea; Boston 1 / Boston with joint; Bronx Red 1 on request / Bronx Red with joint; Cambridge 13 / Cambridge; Country 610 / Country; Dallas 1 / Dallas with joint; Dublin 3 / Dublin with joint; Monsanto 1 / Monsanto with joint; Rustik 540 / Rustik
Jointed or unjointed where available for the selected product
Commercial status
Separately priced upgrades, not automatic additions to this nursery specification
Suitability
Select exterior-rated variants and confirm support, attachment, fire performance, weather exposure, movement joints and coverage before manufacture
Manufacturer documentation & project compliance
Certification ownership
Manufacturer certifications and manufacturing-system approvals relate to the actual production organisation and scope, not to KC Cabins Solutions Ltd unless KC is expressly identified as the holder
Technical evidence
Supporting calculations, material declarations and test reports must match the final components and assembled building
Part L
The supplied brief references Part L 2021. Confirm the applicable edition and transitional arrangements for the actual project; do not assume that the 2021 label applies to every new order
Optional A energy rating
An A-rating can be a separately assessed design objective; no issued EPC or universal A-rating is claimed for this listing
Fire strategy
Panel classifications, element fire-resistance data and FD30 doorsets do not establish a 60-minute whole-building fire rating
Nursery registration
Buying a building does not register a childcare provider or constitute Ofsted approval. Confirm the provider-specific requirements before opening
Delivery, assembly and nursery handover — scope to confirm
Delivery
Price inclusion, geographic coverage and transport requirements to be agreed for this model
On-site assembly
Team, assembly tasks, lifting allocation and price inclusion to be confirmed in writing
Site readiness
Prepared foundations, suitable vehicle and crane access, utility interfaces and site segregation are required to the approved plan
Occupied setting
Coordinate delivery timing and secure separation from children, staff and visitors
Programme
Manufacture, delivery, assembly and commissioning dates follow the agreed design and site review
Handover
Agreed connection, commissioning, safety and handover checks must be complete before occupation
Scope, responsibilities and assumptions
Included in the Curry Wimbledon building specification
12.60m × 6.30m Curry Wimbledon building from the KC Bespoke nursery line
Steel structural frame with anti-corrosive protection
External insulated panels with specified wall U-value 0.18 W/m²K
100mm Kingspan QuadCore KS1150TL internal partitions to the agreed layout
160mm insulated roof assembly with Protan SE 2.0 membrane
Insulated steel floor and 18mm cement-bonded chipboard deck
SPC rigid-core vinyl floor finish, specified Class 42
Triple-glazed UPVC windows with laminated safety glass
Aluminium entrance doors and FD30 internal doorsets to the approved schedule
GEBERIT sanitary fittings, under-sink storage and Rocko Tiles finishes to the agreed sanitary schedule
Air-to-air heat-pump heating and cooling with specified SCOP 4.5
Hidden-fix steel cladding and flashings in a listed standard finish
Curry Wimbledon façade configuration to approved elevations
Separate site, nursery equipment and optional scope
Land, property interests, nursery-business assets and childcare registration are not part of this building purchase
Groundworks, excavations, foundations and supporting base unless expressly included
Incoming power, water, foul drainage, surface-water drainage and final mains connections
Planning and statutory application fees and provider registration responsibilities unless expressly allocated otherwise
External paths, signs, access ramps, decking, fencing, gates, guarding, play surfacing, play equipment and landscaping unless itemised
Loose furniture, toys, learning resources, cots, specialist changing equipment and storage outside the agreed fit-out schedule
Kitchen appliances and specialist food-preparation equipment unless expressly specified
Optional wood-effect, brick-slip and decorative-stone façade upgrades
Additional specialist acoustics, security systems, solar equipment or later relocation unless expressly included
Confirm before releasing this draft
Confirm whether delivery and on-site assembly are included in £117,482 + VAT and define geographic coverage and lifting responsibilities
Agree age groups, target places and an approved measured nursery layout
Confirm the complete room, sanitary, electrical, lighting, hot-water, ventilation, alarm and access-control schedules
Size structure, service distribution and heating/cooling equipment for the 79.38m² building rather than copying fixed quantities from another model
Review safeguarding, accessibility, glazing, fire strategy, acoustics and outdoor interfaces for the proposed site
Agree exact colours, opening arrangements, scope of optional finishes and any cost variation before manufacture
Do not infer a named childcare client, affiliation, Ofsted record or actual Wimbledon location from a keyword or the model name
£117,482 + VAT is the supplied building price. Delivery, offloading and assembly inclusion remain unconfirmed for this draft, rather than being assumed either included or excluded. The agreed quotation and drawings define the final scope.
How the project progresses
Confirm the Curry Wimbledon briefProvide the site postcode, intended age groups, proposed places, room requirements and target opening date.
Develop the measured nursery layoutBalance activity and support rooms within 12.60m × 6.30m; assess usable area, supervision, entrances and outdoor interfaces.
Agree price and delivery scopeConfirm the £117,482 + VAT building scope and whether transport, lifting and assembly are included, together with all separately allocated site works.
Approve specification and manufactureAgree drawings, finishes, complete services schedules and the project approval route before the agreed payment and production stage.
Install and hand overComplete the agreed delivery and assembly scope, site connections, commissioning and handover checks before occupation.
Frequently asked questions
What is the Curry Wimbledon modular nursery building for sale?
A new 12.60m × 6.30m KC Bespoke nursery building with 79.38m² of gross external area. Its fitted material and finishes specification is developed into activity and support rooms through an agreed nursery floor plan.
How much does this nursery building cost?
The supplied building price is £117,482 excluding VAT, or £140,978.40 including the configured 20% VAT. Delivery and assembly inclusion must be confirmed for this model before publishing an installed-project total.
Are delivery and assembly included?
That is not confirmed in the latest Curry Wimbledon brief. The written quotation must establish transport, offloading, lifting, assembly and any associated charges. Previous nursery models included these services, but their commercial terms are not automatically applied to this price.
What are the external dimensions and area?
The external dimensions are 12.60m × 6.30m, giving 79.38m² gross external floor area. Usable internal and qualifying childcare activity areas must be measured separately from the approved floor plan.
Is this a fitted specification or shell and core?
It uses the established fitted KC Bespoke nursery specification: partition panels, SPC flooring, scheduled doors and glazing, sanitary fittings and finishes, and heat-pump heating and cooling. Detailed room, electrical, lighting, ventilation, hot-water and alarm schedules still need agreement.
Does Wimbledon mean this is an existing nursery in Wimbledon?
Wimbledon is treated as part of the supplied Curry Wimbledon model name. This listing does not identify a completed customer project, childcare operator, geographical showroom or nursery place booking.
Is this a nursery business or a building purchase?
The offer is for a new modular building. It does not include land, a property lease, operating childcare business, business goodwill or childcare registration.
How many children can the building accommodate?
No fixed capacity is assigned to the external footprint. The approved usable activity areas, age groups, staffing and provider requirements determine the assessment. England-specific references appear above with a link to the applicable EYFS framework.
Can the plan include toilets, changing, quiet space and storage?
These requirements can be developed through the agreed room and sanitary schedules, subject to available usable space. No classroom count, child-height fitting, appliance list or loose furniture package is inferred from the image.
Are windows and internal finishes included?
The retained package specifies UPVC windows with triple glazing and laminated safety glass, Class 42 SPC flooring, 100mm internal partition panels and scheduled FD30 doorsets. Opening and partition quantities follow the approved layout.
What heating, cooling and ventilation are specified?
Air-to-air heat-pump heating and cooling is specified with SCOP 4.5. Capacity and zones must suit the final plan. Fresh-air ventilation, extraction, noise and summer comfort need separate design coordination; the heat pump does not establish a ventilation design.
Can the red entrance and dark panels be specified?
The illustrated treatment is a design reference. The inherited standard cladding colours remain included, while exact shades, panel arrangement and opening details are agreed from samples and drawings. No RAL code is measured from the image.
Are furniture, toys and outdoor works included?
Only expressly scheduled items are included. The visualisation is not a fit-out inventory: furniture, learning resources, planters, fencing, playhouse, outdoor toys, markings and landscaping remain illustrative. The larger background building is not part of this product.
Can the nursery be relocated later?
A future move can be assessed against structure, condition, connections, lifting arrangements, services, route and the receiving site. It is a separate project, not an included service or a claim that the building is towable.
What approvals are needed?
Check planning, Building Regulations and provider requirements for the actual site and use before ordering. Modular manufacture is not itself an exemption. Government Building Regulations guidance is a starting point, not approval for this product.
Is the building automatically A-rated or Ofsted approved?
No issued EPC, A-rating, inspection outcome or childcare registration is claimed. Manufacturer documentation and the applicable project approval route must support the final specification.
Do the panel fire and acoustic references apply to the whole nursery?
No. The supplied panel references depend on the exact system and its evidence. They do not establish whole-building REI60 performance or room-to-room acoustic separation. The assembled nursery requires coordinated project design.
What is the lead time?
The programme is confirmed after specification, approvals and the site review. No immediate-stock, fixed manufacturing period or guaranteed opening date has been supplied for Curry Wimbledon.
Send the postcode, required rooms, age groups and target opening date. Confirm the 12.60m × 6.30m specification, £117,482 + VAT building price and delivery/assembly scope before order.
